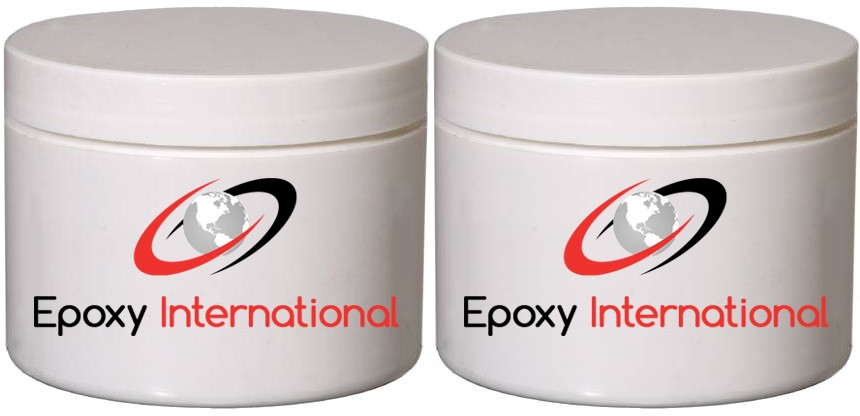

Carbon-Bond 61 Electrically Conductive, Carbon Filled, Room Temperature Cure Epoxy Adhesive

$4.99
Brand Name:
Epoxy International
Quantity:

Product Description

CARBON FILLED ELECTRICALLY CONDUCTIVE EPOXY


PRODUCT DESCRIPTION:

Carbon-Bond 61 Electrically Conductive, Carbon Filled, Room Temperature Cure Epoxy Adhesive is an epoxy adhesive and coating formulation based on conductive carbon.

Carbon-Bond 61 Electrically Conductive, Carbon Filled, Room Temperature Cure Epoxy Adhesive is recommended for electronic bonding and sealing applications that require both fine electrical and mechanical properties.

Carbon-Bond 61 Electrically Conductive, Carbon Filled, Room Temperature Cure Epoxy Adhesive cures at room temperature or can be accelerated with mild heat to form a tenacious bond between similar and dissimilar substrates.

GENERAL PROPERTIES

Appearance Black
Cure Type Heat cure or Room temperature
Benefits Continuity of conductivity
High adhesion
Wide operating temperature range
Mix Ratio by weight 100:10 / Resin:Hardener
Substrates Aluminum, copper, magnesium, steel, bronze, nickel, ceramic, glass, phenolic, G-10 epoxy glass boards
Operating Temperature -50 to 170 C
Typical Applications Electronic bonding and sealing applications that require both fine electrical and mechanical properties.
Shelf Life 6 Months

UNCURED PROPERTIES

Compressive Strength, psi 13,000
Specific Gravity, mixed 1.35 g/cc
Pot Life 30 minutes

CURE SCHEDULE:

15 minutes @ 100C
1 hour @ 60C
24 hours @ 25C

MISC PROPERTIES:

Volume Resistivity ohm cm: < 40
Tensile Strength, psi 8,500
Shrinkage Linear 0.003 in/in
Hardness, Shore D 85

GENERAL INFORMATION:

For safe handling information on this product, consult the Material Safety Data Sheet, (MSDS).

HOW TO USE:

1) Carefully clean and dry all surfaces to be bonded.

2) Apply Carbon-Bond 61 Electrically Conductive, Carbon Filled, Room Temperature Cure Epoxy Adhesive completely mixed adhesive to the prepared surfaces, and gently press these surfaces together. Contact pressure is adequate for strong, reliable bonds; however, maintain contact until adhesive is completely cured.

3) Some separation of components is common during shipping and storage. For this reason, it is recommended that the contents of the shipping container be thoroughly mixed prior to use.

4) Some ingredients in this formulation provided may crystallize when subjected to low temperature storage. A gentle warming cycle of 52C for 30 minutes prior to mixing components may be necessary. Crystallized epoxy components do not react as well as liquid components and should be re-dissolved prior to use for best results.

AVAILABILITY:

This epoxy can be supplied in various different packages.
