AA-CARB 61 Electrically Conductive, Carbon Filled, Room Temperature Cure Epoxy Adhesive

$4.99

Brand Name:

Atom Adhesives

* Size:

2.5gm pouch(s)
5gm pouch(s)
10gm pouch(s)
100gm kit(s)
250gm kit(s)

Quantity:

TDS
Product Review
Find Similar Products by Category

Product Description

CARBON FILLED ELECTRICALLY CONDUCTIVE EPOXY

PRODUCT DESCRIPTION:

AA-CARB 61 is an epoxy adhesive and coating formulation based on conductive carbon.

AA-CARB 61 is recommended for electronic bonding and sealing applications that require both fine electrical and mechanical properties.

AA-CARB 61 cures at room temperature or can be accelerated with mild heat to form a tenacious bond between similar and dissimilar substrates.

GENERAL PROPERTIES

Appearance	Black
Cure Type	Heat cure or Room temperature
Benefits	Continuity of conductivity High adhesion Wide operating temperature range
Mix Ratio by weight	100:10 / Resin:Hardener
Substrates	Aluminum, copper, magnesium, steel, bronze, nickel, ceramic, glass, phenolic, G-10 epoxy glass boards
Operating Temperature	-50 to 170 C
Typical Applications	Electronic bonding and sealing applications that require both fine electrical and mechanical properties.
Shelf Life	6 Months

UNCURED PROPERTIES

Compressive Strength, psi	13,000
Specific Gravity, mixed	1.35 g/cc
Pot Life	30 minutes

CURE SCHEDULE:

15 minutes	@ 100C
1 hour	@ 60C
24 hours	@ 25C

MISC PROPERTIES:

Volume Resistivity	ohm cm: < 40
Tensile Strength, psi	8,500
Shrinkage Linear	0.003 in/in
Hardness, Shore D	85

GENERAL INFORMATION:

For safe handling information on this product, consult the Material Safety Data Sheet, (MSDS).

HOW TO USE:

1) Carefully clean and dry all surfaces to be bonded.

2) Apply AA-CARB 61 completely mixed adhesive to the prepared surfaces, and gently press these surfaces together. Contact pressure is adequate for strong, reliable bonds; however, maintain contact until adhesive is completely cured.

3) Some separation of components is common during shipping and storage. For this reason, it is recommended that the contents of the shipping container be thoroughly mixed prior to use.

4) Some ingredients in this formulation provided may crystallize when subjected to low temperature storage. A gentle warming cycle of 52C for 30 minutes prior to mixing components may be necessary. Crystallized epoxy components do not react as well as liquid components and should be re-dissolved prior to use for best results.

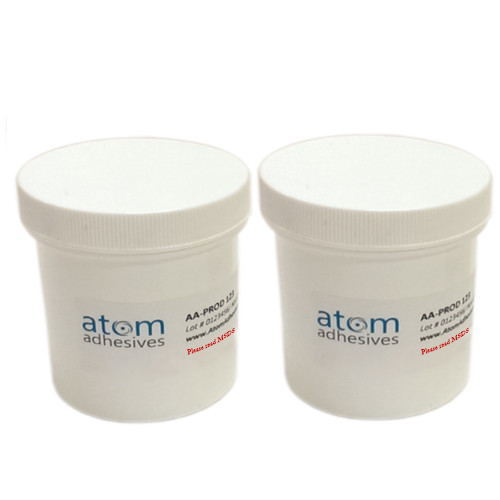

AVAILABILITY:

This epoxy can be supplied in various different packages.
