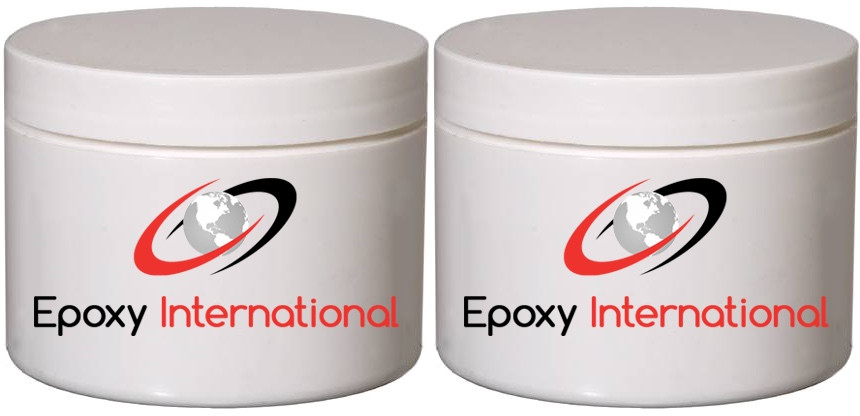

Silver-Bond 2 Silver Loaded Electrically and Thermally Conductive 2 Part Epoxy Adhesive

$10.99
Brand Name:
Epoxy International
Quantity:

Product Description

PURE SILVER FILLED ELECTRICALLY CONDUCTIVE EPOXY, MAXIMUM CONTINUITY OF CONDUCTIVITY


PRODUCT DESCRIPTION:

Silver-Bond 2 Silver Loaded Electrically and Thermally Conductive 2 Part Epoxy Adhesive is an epoxy adhesive and coating formulation based on pure silver. This versatile silver formulation offers the maximum continuity of conductivity with an electrical resistivity value of less than 1x10-4 ohmcm.

Silver-Bond 2 Silver Loaded Electrically and Thermally Conductive 2 Part Epoxy Adhesive is also characterized by a wide operating temperature range from 50 to +170C.

Silver-Bond 2 Silver Loaded Electrically and Thermally Conductive 2 Part Epoxy Adhesive is recommended for electronic bonding and sealing applications that require both fine electrical and mechanical properties.

PRODUCT PROPERTIES:

Appearance Silver
Cure Type Heat cure or Room temperature
Benefits High strength
Perfect bond
Cold solder for heat-sensitive components
Mix Ratio by weight 100:5 / Resin:Hardener
Substrates Excellent choice aluminum, copper, magnesium, steel, bronze, nickel, kovar, ceramic, glass, phenolic and G-10 epoxy glass boards.
Operating Temperature 50 to +170C
Typical Applications Electrical, conductive, rmi/efi shielding, circuitry, printed circuit board and electronics repair

UNCURED PROPERTIES:

Specific Gravity, mixed 2.79
Reactive solids contents, % 100
Pot Life 1 Hour
Shelf Life 1 Year
Viscosity Paste

CURE SCHEDULE:

15 minutes @ 100C
45 minutes @ 50C
24 hours Room temperature

CURED PROPERTIES:

Hardness, Shore D 85
Shrinkage linear in/in 0.003
Lap shear strength, psi 5 N/mm2 700 psi
Volume Resistivity ohm. cm < 0.0001
Thermal Expansion Coefficient, (cm / cm / C 10-5) 1.5
Thermal Conductivity, btu / hr / ft2 / F / in 100
Tensile Strength, psi 9500
Compressive Strength, psi 14,000
Heat Distortion, C 95
Electrical Resistivity < 1x10 -4 ohmcm/td>

GENERAL INFORMATION:

For safe handling information on this product, consult the Material Safety Data Sheet, (MSDS).

HOW TO USE:

1) Carefully clean and dry all surfaces to be bonded.

2) Apply Silver-Bond 2 Silver Loaded Electrically and Thermally Conductive 2 Part Epoxy Adhesive completely mixed adhesive to the prepared surfaces, and gently press these surfaces together. Contact pressure is adequate for strong, reliable bonds; however, maintain contact until adhesive is completely cured.

3) Some separation of components is common during shipping and storage. For this reason, it is recommended that the contents of the shipping container be thoroughly mixed prior to use.

4) Some ingredients in this formulation provided may crystallize when subjected to low temperature storage. A gentle warming cycle of 52C for 30 minutes prior to mixing components may be necessary. Crystallized epoxy components do not react as well as liquid components and should be re-dissolved prior to use for best results.

AVAILABILITY:

This epoxy can be supplied in various different packages.
