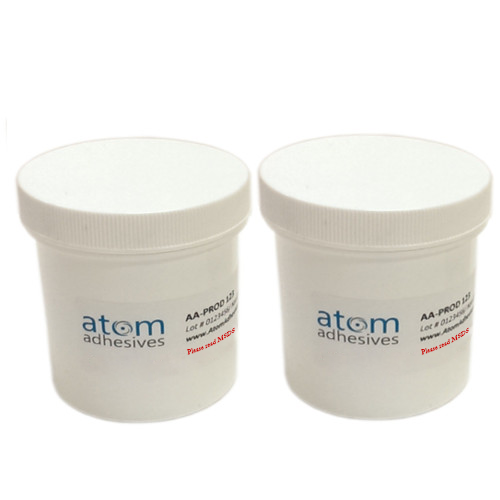

AA-BOND FDA26 FDA Grade Thermally Conductive Epoxy Adhesive, Two Part Compound

$4.99

Brand Name:

Atom Adhesives

* Size:

2.5gm pouch(s)
5gm pouch(s)
10gm pouch(s)
100gm kit(s)

Quantity:

TDS
Product Review
Find Similar Products by Category

Product Description

FDA GRADE THERMALLY CONDUCTIVE EPOXY ADHESIVE

PRODUCT DESCRIPTION:

AA-BOND FDA26 is Versatile adhesive guaranteed a high strength bond.

AABOND FDA26 is two part adhesive used and cured at room temperature for bonding, repair applications by manufacturers of food preparation, processing and packaging equipment and devices.

PRODUCT PROPERTIES:

Appearance	Grey
Cure Type	Heat cure or Room temperature
Benefits	Excellent durability High shear and peel strength Heat and impact resistant Handy duo-pack cartridges for easy mixing
Mix Ratio by weight	100:14 / Resin:Hardener
Substrates	Most metals, ceramic, glass and plastics
Operating Temperatures	-60 to 135 C

UNCURED PROPERTIES:

Viscosity @ 25 C, cps	17,500 1000 @ temperature 77 F, 25 C
Specific Gravity, mixed	2.36
Reactive solids contents, %	100
Pot Life	50 minutes

CURE SCHEDULE:

1-4 Hours	@ 65C
24 Hours	@ 25C

CURED PROPERTIES:

Adhesive Bond Strength, psi	2120 ( 1 hr @ 65C) 2190 (24 hrs @ 25C)
Hardness, Shore D	86 (24 HR @ 25C) 90 (1 hr @ 65C)

THERMAL PROPERTIES:

Glass transition temperature (Tg)	113C, 235 F

GENERAL INFORMATION:

For safe handling information on this product, consult the Material Safety Data Sheet, (MSDS).

HOW TO USE:

1) Carefully clean and dry all surfaces to be bonded.

2) Apply AA-BOND FDA26 completely mixed adhesive to the prepared surfaces, and gently press these surfaces together. Contact pressure is adequate for strong, reliable bonds; however, maintain contact until adhesive is completely cured.

3) Some separation of components is common during shipping and storage. For this reason, it is recommended that the contents of the shipping container be thoroughly mixed prior to use.

4) Some ingredients in this formulation provided may crystallize when subjected to low temperature storage. A gentle warming cycle of 52C for 30 minutes prior to mixing components may be necessary. Crystallized epoxy components do not react as well as liquid components and should be re-dissolved prior to use for best results.

AVAILABILITY:

This epoxy can be supplied in various different packages.
