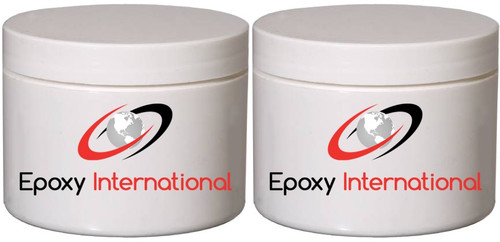

FDA-Bond 15 Food & Drug Administration Medical Grade Epoxy Adhesive for Bonding and Coating

$4.99
Brand Name:
Epoxy International
Quantity:

Product Description

FOOD AND DRUG APPLICATION EPOXY ADHESIVE


PRODUCT DESCRIPTION:

FDA-Bond 15 Food & Drug Administration Medical Grade Epoxy Adhesive for Bonding and Coating is a low viscosity epoxy resin system specifically developed for bonding and coating applications in accordance with Title 21, U.S. Code of Federal Regulations, Food and Drug Administration Chapter 1, Sub Part B, Sections 175.105 and 175.300.

FDA-Bond 15 Food & Drug Administration Medical Grade Epoxy Adhesive for Bonding and Coating is two-part adhesive is used for bonding, laminating and repair applications by manufacturers of food preparation, processing and packaging equipment, and by manufacturers of catheters, hearing aids, dental products and other biomedical instruments and devices.

FDA-Bond 15 Food & Drug Administration Medical Grade Epoxy Adhesive for Bonding and Coating is an effective electrical insulator, and it provides low permeability to gases and vapors and good resistance to water, weather, galvanic action, to petroleum solvents, lubricants and fuels, to mild acids and alkalis, and to many other organic and inorganic compounds.

GENERAL PROPERTIES

Appearance Clear
Cure Type Heat cure or Room temperature
Benefits Low viscosity
Good resistance
Effective electrical insulator
Low permeability
Mix Ratio by weight 100:20 / Resin:Hardener
Substrates Most metals, ceramic, glass and plastics
Operating Temperature -70 to 140 C
Typical Application Developed for bonding and coating applications

UNCURED PROPERTIES:

Viscosity @ 25 C 4,300
Thixotropic Index 1.0
Specific Gravity, mixed 1.16 g/cc
Reactive solids contents, % 100
Pot Life 25 minutes

CURE SCHEDULE:

1-4 hours @ 65C
24 hours @ 25C

CURED PROPERTIES:

Glass transition temperature (Tg), C 100
Hardness, Shore D 87
Water Absorption, % 0.23
Dielectric strength, Volts/mil 420
Lap shear strength, psi 2000 (Alum to Alum)
Volume Resistivity 2.00e+14 ohm-cm
Dielectric Constant 4.3 @ Frequency 1000 Hz

GENERAL INFORMATION:

For safe handling information on this product, consult the Material Safety Data Sheet, (MSDS).

HOW TO USE:

1) Carefully clean and dry all surfaces to be bonded.

2) Apply FDA-Bond 15 Food & Drug Administration Medical Grade Epoxy Adhesive for Bonding and Coating completely mixed adhesive to the prepared surfaces, and gently press these surfaces together. Contact pressure is adequate for strong, reliable bonds; however, maintain contact until adhesive is completely cured.

3) Some separation of components is common during shipping and storage. For this reason, it is recommended that the contents of the shipping container be thoroughly mixed prior to use.

4) Some ingredients in this formulation provided may crystallize when subjected to low temperature storage. A gentle warming cycle of 52C for 30 minutes prior to mixing components may be necessary. Crystallized epoxy components do not react as well as liquid components and should be re-dissolved prior to use for best results.

AVAILABILITY:

This epoxy can be supplied in various different packages.
